PV MassSpec

Installing the Software

Whoa, this is so cool!

Note: For proper operation, install and run PV MassSpec using a Windows Administrator account.

1

Download the software from PV Cloud.

Link: https://cloud.pfeiffer-vacuum.de/index.php/s/3vtCG6e6x7BqRps

Password: PrismaPro

2

Open the root folder and locate:

PVMassSpec_Installer.exe

3

Move PVMassSpec_Installer.exe file to a location on the C:\ drive of the computer.

4

Double click the C:\ drive installer.exe file to begin installation.

5

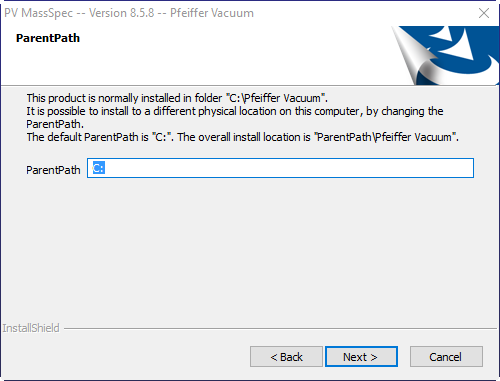

Specify the ParentPath of the installation directory. The default parent path is C:. For a ParentPath that is not the default, the installer creates a Directory Junction named C:\Pfeiffer Vacuum that will point to the ParentPath\Pfeffer Vacuum location and will install the program to the Directory Junction. Click Next to continue.


6

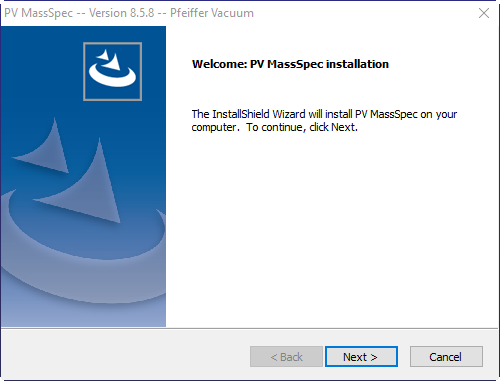

The InstallShield Wizard will open. Click Next to continue.


7

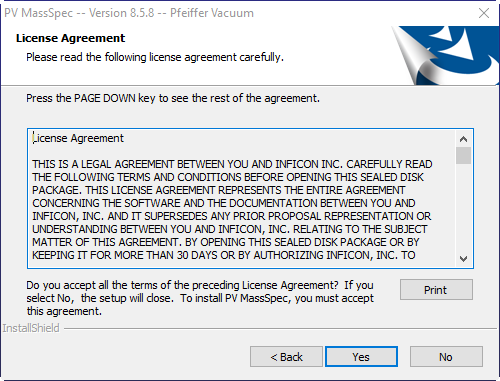

Read the License Agreement. If the license agreement terms are acceptable, click Yes to continue.


8

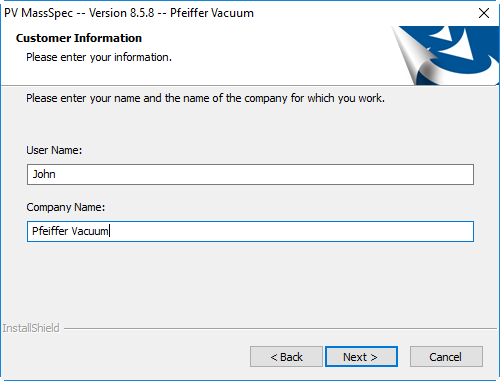

Enter a user name and company. Click Next to install PV MassSpec.
